TLP785(D4-GR,F

In Stock: 1,218

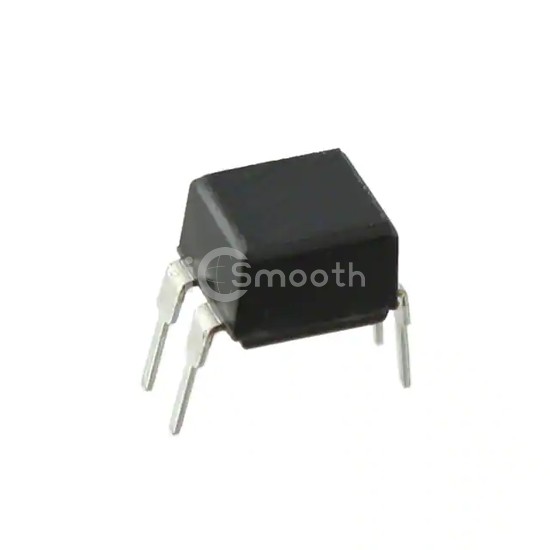

TLP785(D4-GR,F - Toshiba Semiconductor and Storage - Optoisolators - Transistor, Photovoltaic Output
REF: TLP785(D4-GR,F Toshiba Semiconductor and Storage
TLP785(D4-GR,F

Toshiba Semiconductor and Storage

X36 PB-F TRANSISTOR COUPLER VDE

TLP785(D4-GR,F is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. X36 PB-F TRANSISTOR COUPLER VDE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.15V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,218

Tiered Pricing USD
1+ $0.8500 —
10+ $0.5890 -31%
100+ $0.4321 -49%
500+ $0.3620 -57%
1,000+ $0.3390 -60%
2,000+ $0.3194 -62%
5,000+ $0.2981 -65%
10,000+ $0.2848 -66%
25,000+ $0.2703 -68% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)50% @ 5mA
Current Transfer Ratio (Max)600% @ 5mA
Turn On / Turn Off Time (Typ)3µs, 3µs
Rise / Fall Time (Typ)2µs, 3µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 110°C
Mounting TypeThrough Hole
Package / Case4-DIP (0.300", 7.62mm)
Supplier Device Package4-DIP
