Name: TLP751(D4-O-LF2,F)
Brand: Toshiba Semiconductor and Storage
SKU: TLP751(D4-O-LF2,F)
Availability: InStock

REF: TLP751(D4-O-LF2,F) Toshiba Semiconductor and Storage

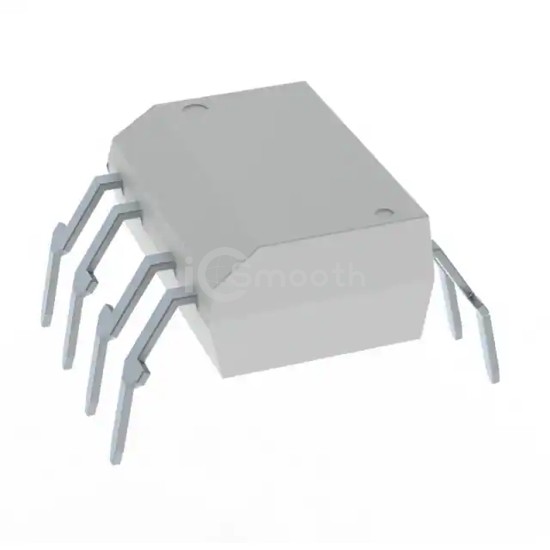

TLP751(D4-O-LF2,F)

Toshiba Semiconductor and Storage

OPTOCOUPLER TRANS

TLP751(D4-O-LF2,F) is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOCOUPLER TRANS. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.65V, package / case 8-DIP (0.300", 7.62mm).

Request a Quote

In Stock: 9,237

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	10% @ 16mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	200ns, 1µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	15V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.65V
Current - DC Forward (If) (Max)	25 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
