TLP748J(D4,F)

In Stock: 8,091

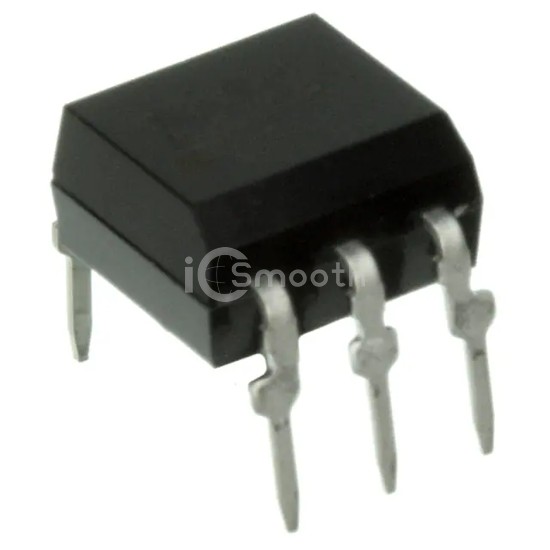

TLP748J(D4,F) - Toshiba Semiconductor and Storage - Optoisolators - Triac, SCR Output
REF: TLP748J(D4,F) Toshiba Semiconductor and Storage
TLP748J(D4,F)

Toshiba Semiconductor and Storage

OPTOISOLATOR 4KV SCR 6DIP

TLP748J(D4,F) is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLATOR 4KV SCR 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 8,091

Specifications

18 parameters
Product StatusActive
Output TypeSCR
Zero Crossing CircuitNo
Number of Channels1
Voltage - Isolation4000Vrms
Voltage - Off State600 V
Static dV/dt (Min)5V/µs
Current - LED Trigger (Ift) (Max)10mA
Current - On State (It (RMS)) (Max)150 mA
Current - Hold (Ih)1mA
Turn On Time15µs
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm)
Supplier Device Package6-DIP
Approval AgencyBSI, SEMKO, UR, VDE
