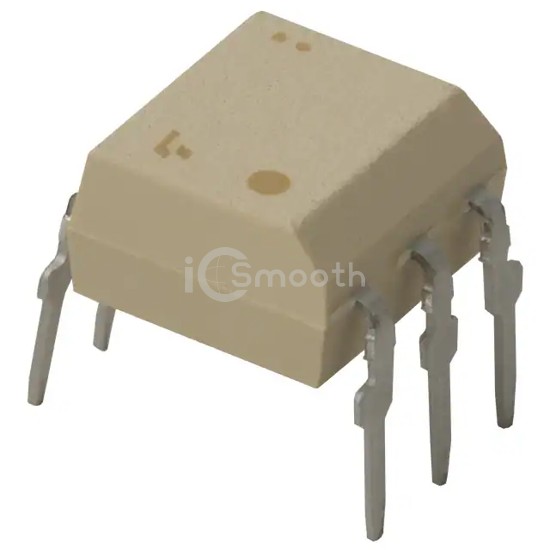

Name: TLP734(D4-C172,F)
Brand: Toshiba Semiconductor and Storage
SKU: TLP734(D4-C172,F)
Availability: InStock

REF: TLP734(D4-C172,F) Toshiba Semiconductor and Storage

TLP734(D4-C172,F)

Toshiba Semiconductor and Storage

OPTOCOUPLER TRANS

TLP734(D4-C172,F) is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOCOUPLER TRANS. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-DIP (0.300", 7.62mm).

Request a Quote

In Stock: 9,172

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	4000Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	3µs, 3µs
Rise / Fall Time (Typ)	2µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	55V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
