TLP701H(F)

In Stock: 8,929
TLP701H(F) - Toshiba Semiconductor and Storage - Isolators - Gate Drivers
REF: TLP701H(F) Toshiba Semiconductor and Storage
TLP701H(F)

Toshiba Semiconductor and Storage

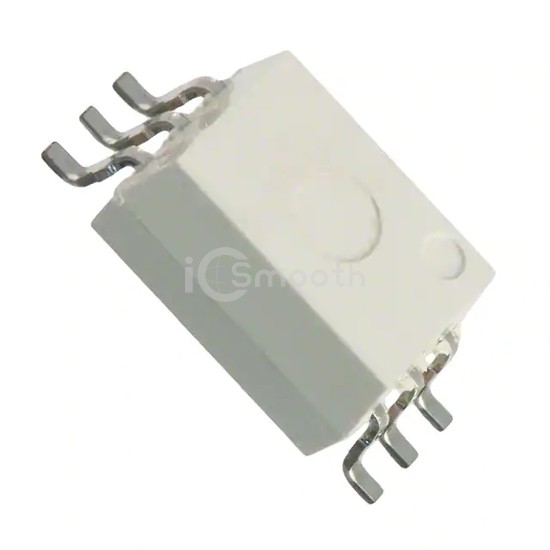

OPTOISO 5KV GATE DRIVER 6SDIP GW

TLP701H(F) is a Isolators - Gate Drivers manufactured by Toshiba Semiconductor and Storage. OPTOISO 5KV GATE DRIVER 6SDIP GW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.57V, package / case 6-SOIC (0.268", 6.80mm Width).

Datasheet Request a Quote

In Stock: 8,929

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)20kV/µs
Propagation Delay tpLH / tpHL (Max)700ns, 700ns
Pulse Width Distortion (Max)500ns
Rise / Fall Time (Typ)50ns, 50ns
Current - Output High, Low400mA, 400mA
Current - Peak Output600mA
Voltage - Forward (Vf) (Typ)1.57V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply10V ~ 30V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.268", 6.80mm Width)
Supplier Device Package6-SDIP Gull Wing
Approval AgencycUL, UL
