Name: TLP627(TP1,F)
Brand: Toshiba Semiconductor and Storage
SKU: TLP627(TP1,F)
Availability: InStock

REF: TLP627(TP1,F) Toshiba Semiconductor and Storage

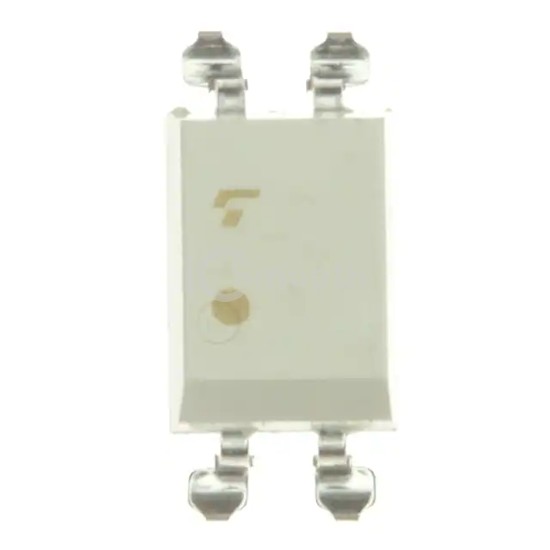

TLP627(TP1,F)

OPTOISOLTR 5KV DARLINGTON 4-SMD

TLP627(TP1,F) is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLTR 5KV DARLINGTON 4-SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 2,771

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	1000% @ 1mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	50µs, 15µs
Rise / Fall Time (Typ)	40µs, 15µs
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	300V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	1.2V
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
