Name: TLP624LF1F
Brand: Toshiba Semiconductor and Storage
SKU: TLP624LF1F
Availability: InStock

REF: TLP624LF1F Toshiba Semiconductor and Storage

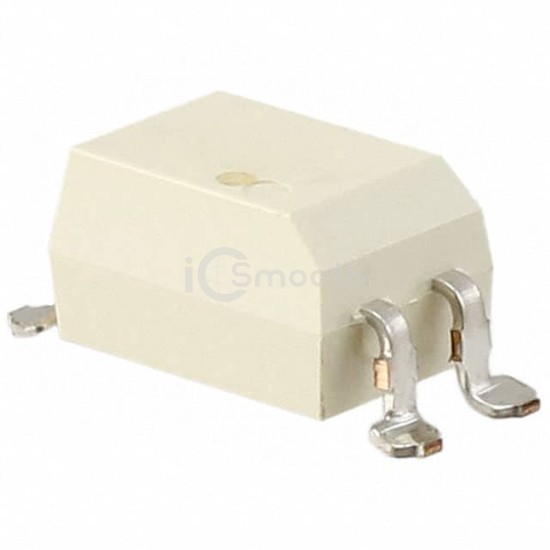

TLP624LF1F

OPTOISOLATR 5KV TRANSISTOR 4-SMD

TLP624LF1F is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLATR 5KV TRANSISTOR 4-SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 2,869

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	100% @ 1mA
Current Transfer Ratio (Max)	1200% @ 1mA
Turn On / Turn Off Time (Typ)	10µs, 8µs
Rise / Fall Time (Typ)	8µs, 8µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	55V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
