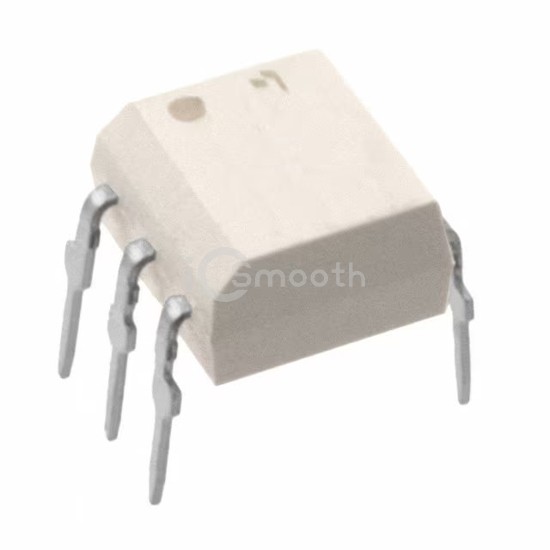

Name: TLP591B(C,F)
Brand: Toshiba Semiconductor and Storage
SKU: TLP591B(C,F)
Price: 3.34 USD
Availability: InStock

REF: TLP591B(C,F) Toshiba Semiconductor and Storage

TLP591B(C,F)

Toshiba Semiconductor and Storage

OPTOISOLATOR 2.5KV PHVOLT 6-DIP

TLP591B(C,F) is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLATOR 2.5KV PHVOLT 6-DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.4V, package / case 6-DIP (0.300", 7.62mm), 5 Leads.

Datasheet Request a Quote

In Stock: 5,708

Tiered Pricing USD

1+ $3.3400 —

50+ $2.0424 -39%

100+ $1.9108 -43%

500+ $1.6769 -50%

1,000+ $1.6007 -52%

2,000+ $1.5363 -54%

5,000+ $1.4660 -56% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	-
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	200µs, 3ms
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Photovoltaic

Voltage - Output (Max)	7V
Current - Output / Channel	24µA
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm), 5 Leads
Supplier Device Package	6-DIP, 5 Lead
