TLP548J(TP1,F)

In Stock: 4,659

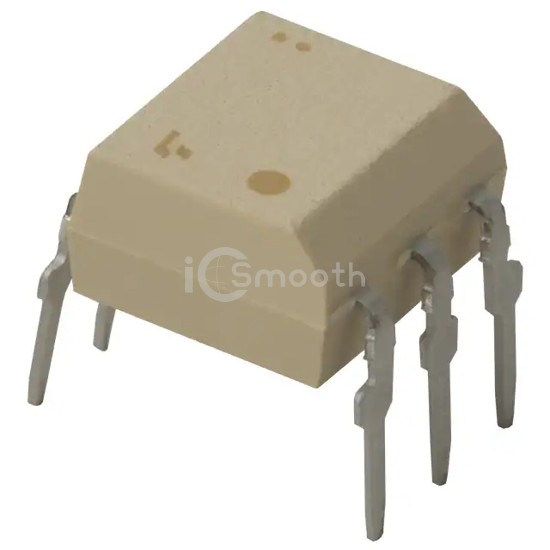

TLP548J(TP1,F) - Toshiba Semiconductor and Storage - Optoisolators - Triac, SCR Output
REF: TLP548J(TP1,F) Toshiba Semiconductor and Storage
TLP548J(TP1,F)

Toshiba Semiconductor and Storage

PHOTOTHYRISTOR LOW TRIGGER LED

TLP548J(TP1,F) is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. PHOTOTHYRISTOR LOW TRIGGER LED. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - forward (vf) (typ) 1.15V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 4,659

Tiered Pricing USD
1+ $1.0300 —
10+ $0.9150 -11%
25+ $0.8740 -15%
50+ $0.8440 -18%
100+ $0.8152 -21%
250+ $0.7785 -24%
500+ $0.7518 -27% BEST

Specifications

18 parameters
Product StatusActive
Output TypeSCR
Zero Crossing CircuitNo
Number of Channels1
Voltage - Isolation2500Vrms
Voltage - Off State600 V
Static dV/dt (Min)5V/µs
Current - LED Trigger (Ift) (Max)7mA
Current - On State (It (RMS)) (Max)150 mA
Current - Hold (Ih)1mA
Turn On Time10µs
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-25°C ~ 85°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm)
Supplier Device Package6-DIP
Approval AgencyUR
