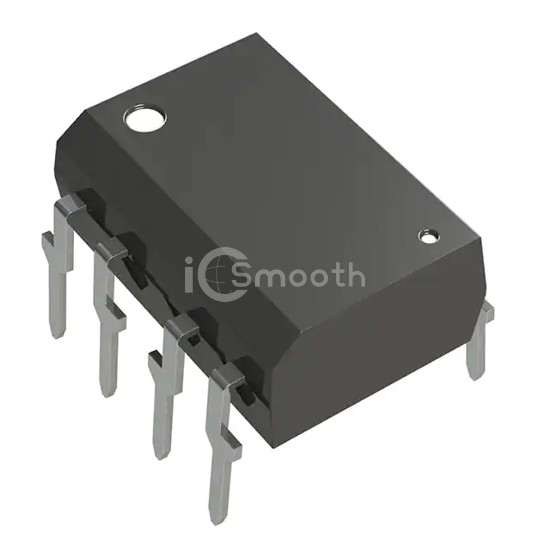

Name: TLP351(F)
Brand: Toshiba Semiconductor and Storage
SKU: TLP351(F)
Price: 1.99 USD
Availability: InStock

REF: TLP351(F) Toshiba Semiconductor and Storage

TLP351(F)

Toshiba Semiconductor and Storage

OPTOISO 3.75KV 1CH GATE DVR 8DIP

TLP351(F) is a Isolators - Gate Drivers manufactured by Toshiba Semiconductor and Storage. OPTOISO 3.75KV 1CH GATE DVR 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.55V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 29,515

Tiered Pricing USD

1+ $1.9900 —

50+ $1.1682 -41%

100+ $1.0845 -46%

500+ $0.9355 -53%

1,000+ $0.8869 -55% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	10kV/µs
Propagation Delay tpLH / tpHL (Max)	700ns, 700ns
Pulse Width Distortion (Max)	-
Rise / Fall Time (Typ)	50ns, 50ns
Current - Output High, Low	400mA, 400mA

Current - Peak Output	600mA
Voltage - Forward (Vf) (Typ)	1.55V
Current - DC Forward (If) (Max)	20 mA
Voltage - Output Supply	10V ~ 30V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
Approval Agency	-
