Name: TLP331(BV,F)
Brand: Toshiba Semiconductor and Storage
SKU: TLP331(BV,F)
Availability: InStock

REF: TLP331(BV,F) Toshiba Semiconductor and Storage

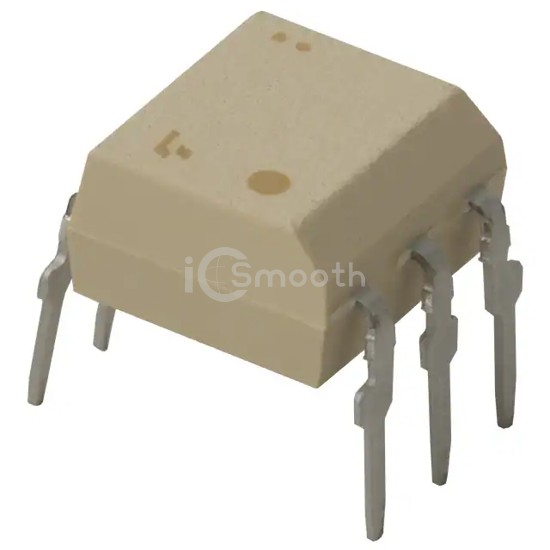

TLP331(BV,F)

OPTOISO 5KV TRANS W/BASE 6DIP

TLP331(BV,F) is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOISO 5KV TRANS W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,958

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	200% @ 1mA
Current Transfer Ratio (Max)	1200% @ 1mA
Turn On / Turn Off Time (Typ)	10µs, 8µs
Rise / Fall Time (Typ)	8µs, 8µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	55V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
