TLP3083(TP1,F

In Stock: 1,142

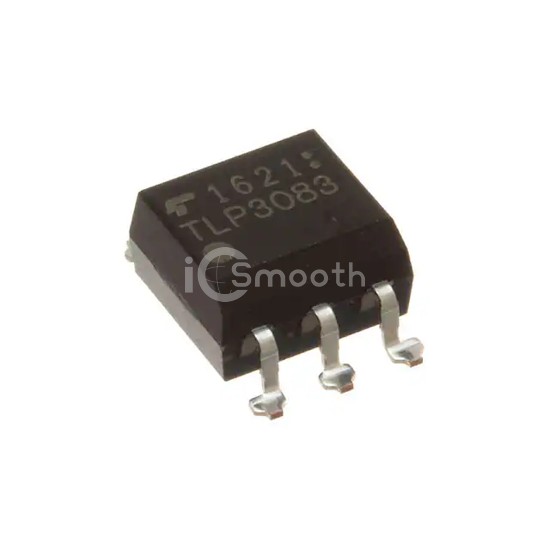

TLP3083(TP1,F - Toshiba Semiconductor and Storage - Optoisolators - Triac, SCR Output
REF: TLP3083(TP1,F Toshiba Semiconductor and Storage
TLP3083(TP1,F

Toshiba Semiconductor and Storage

OPTOISO 5KV TRIAC 6SMD

TLP3083(TP1,F is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. OPTOISO 5KV TRIAC 6SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-SMD (5 Leads), Gull Wing.

Datasheet Request a Quote

In Stock: 1,142

Tiered Pricing USD
1+ $1.7800 —
10+ $1.2700 -29%
100+ $0.9637 -46%
500+ $0.8282 -53% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTriac
Zero Crossing CircuitYes
Number of Channels1
Voltage - Isolation5000Vrms
Voltage - Off State800 V
Static dV/dt (Min)2kV/µs (Typ)
Current - LED Trigger (Ift) (Max)5mA
Current - On State (It (RMS)) (Max)100 mA
Current - Hold (Ih)600µA (Typ)
Turn On Time-
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD (5 Leads), Gull Wing
Supplier Device Package6-SO, 5 Lead
Approval AgencyCQC, CSA, cUL, UL
