TLP3064(D4TP1S,C,F

In Stock: 2,199

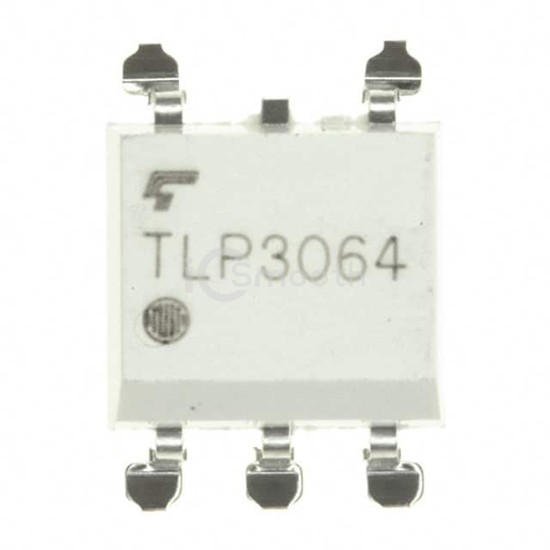

TLP3064(D4TP1S,C,F - Toshiba Semiconductor and Storage - Optoisolators - Triac, SCR Output
REF: TLP3064(D4TP1S,C,F Toshiba Semiconductor and Storage
TLP3064(D4TP1S,C,F

Toshiba Semiconductor and Storage

X36 PB-F PHOTOCOUPLER SMD, VDE,

TLP3064(D4TP1S,C,F is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. X36 PB-F PHOTOCOUPLER SMD, VDE,. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.4V, package / case 6-DIP (0.300", 7.62mm), 5 Leads.

Datasheet Request a Quote

In Stock: 2,199

Tiered Pricing USD
1+ $1.9000 —
10+ $1.3580 -29%
100+ $1.0330 -46%
500+ $0.8897 -53% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTriac
Zero Crossing CircuitYes
Number of Channels1
Voltage - Isolation5000Vrms
Voltage - Off State600 V
Static dV/dt (Min)200V/µs
Current - LED Trigger (Ift) (Max)3mA
Current - On State (It (RMS)) (Max)100 mA
Current - Hold (Ih)600µA (Typ)
Turn On Time-
Voltage - Forward (Vf) (Typ)1.4V
Current - DC Forward (If) (Max)30 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm), 5 Leads
Supplier Device Package6-DIP (Cut), 5 Lead
Approval AgencycUR, UR, VDE
