TLP3062A(TP1,F

In Stock: 3,999

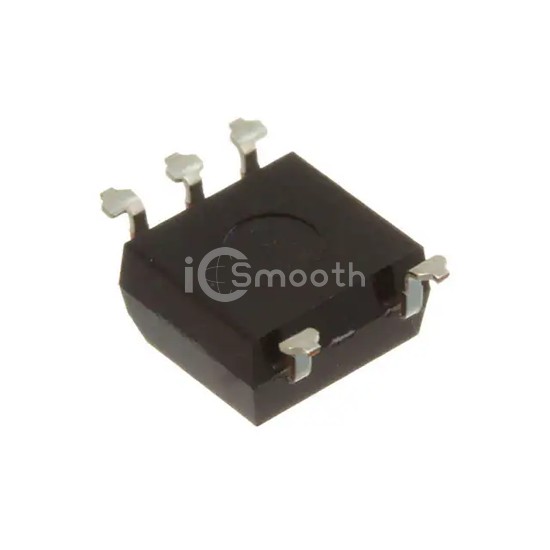

TLP3062A(TP1,F - Toshiba Semiconductor and Storage - Optoisolators - Triac, SCR Output
REF: TLP3062A(TP1,F Toshiba Semiconductor and Storage
TLP3062A(TP1,F

Toshiba Semiconductor and Storage

OPTO TRIAC COUPLER; ZERO-VOLTAGE

TLP3062A(TP1,F is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. OPTO TRIAC COUPLER; ZERO-VOLTAGE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-SMD (5 Leads), Gull Wing.

Datasheet Request a Quote

In Stock: 3,999

Tiered Pricing USD
1+ $1.5500 —
10+ $1.0990 -29%
100+ $0.8286 -47%
500+ $0.7087 -54% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTriac
Zero Crossing CircuitYes
Number of Channels1
Voltage - Isolation5000Vrms
Voltage - Off State600 V
Static dV/dt (Min)2000V/µs (Typ)
Current - LED Trigger (Ift) (Max)10mA
Current - On State (It (RMS)) (Max)100 mA
Current - Hold (Ih)600µA (Typ)
Turn On Time-
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD (5 Leads), Gull Wing
Supplier Device Package6-SO, 5 Lead
Approval AgencyCQC, cUR, UR
