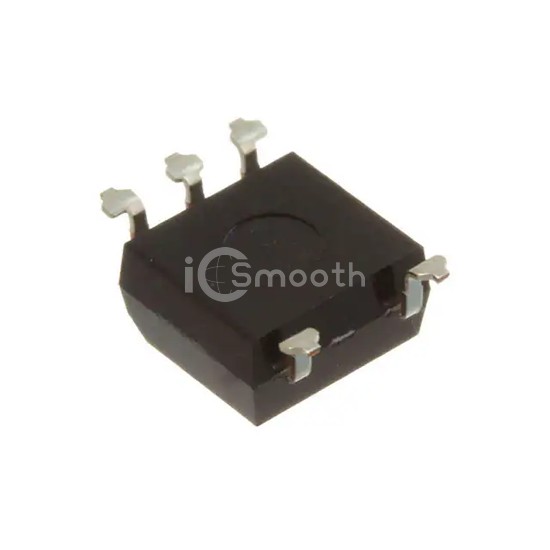

Name: TLP3052A(TP1,F
Brand: Toshiba Semiconductor and Storage
SKU: TLP3052A(TP1,F
Price: 1.35 USD
Availability: InStock

REF: TLP3052A(TP1,F Toshiba Semiconductor and Storage

TLP3052A(TP1,F

Toshiba Semiconductor and Storage

OPTO TRIAC COUPLER; NON-ZERO-VOL

TLP3052A(TP1,F is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. OPTO TRIAC COUPLER; NON-ZERO-VOL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-SMD (5 Leads), Gull Wing.

Datasheet Request a Quote

In Stock: 6,617

Tiered Pricing USD

1+ $1.3500 —

10+ $0.9560 -29%

100+ $0.7159 -47%

500+ $0.6094 -55% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Triac
Zero Crossing Circuit	No
Number of Channels	1
Voltage - Isolation	5000Vrms
Voltage - Off State	600 V
Static dV/dt (Min)	2000V/µs (Typ)
Current - LED Trigger (Ift) (Max)	10mA
Current - On State (It (RMS)) (Max)	100 mA

Current - Hold (Ih)	600µA (Typ)
Turn On Time	-
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	50 mA
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD (5 Leads), Gull Wing
Supplier Device Package	6-SO, 5 Lead
Approval Agency	CQC, cUR, UR
