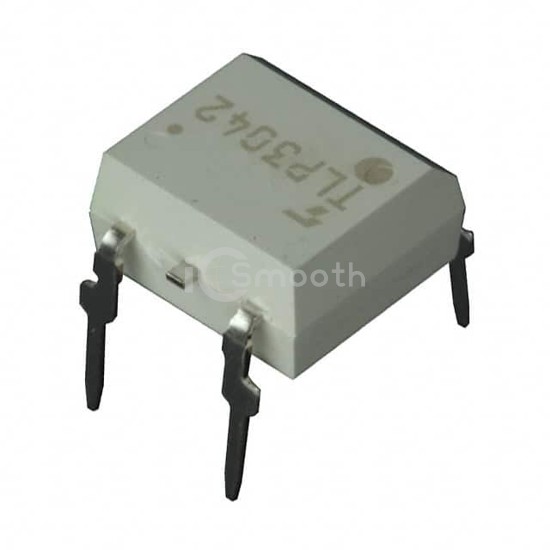

Name: TLP3042(TP1,S,C,F)
Brand: Toshiba Semiconductor and Storage
SKU: TLP3042(TP1,S,C,F)
Availability: InStock

REF: TLP3042(TP1,S,C,F) Toshiba Semiconductor and Storage

TLP3042(TP1,S,C,F)

Toshiba Semiconductor and Storage

X36 PB-F PHOTOCOUPLER SMD T&R JA

TLP3042(TP1,S,C,F) is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. X36 PB-F PHOTOCOUPLER SMD T&R JA. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-DIP (0.300", 7.62mm), 5 Leads.

Datasheet Request a Quote

In Stock: 1,647

Specifications

18 parameters

Product Status	Obsolete
Output Type	Triac
Zero Crossing Circuit	Yes
Number of Channels	1
Voltage - Isolation	5000Vrms
Voltage - Off State	400 V
Static dV/dt (Min)	200V/µs
Current - LED Trigger (Ift) (Max)	10mA
Current - On State (It (RMS)) (Max)	100 mA

Current - Hold (Ih)	600µA (Typ)
Turn On Time	-
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	50 mA
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm), 5 Leads
Supplier Device Package	6-DIP (Cut), 5 Lead
Approval Agency	BSI, SEMKO, UR
