TLP3023SF

In Stock: 1,352

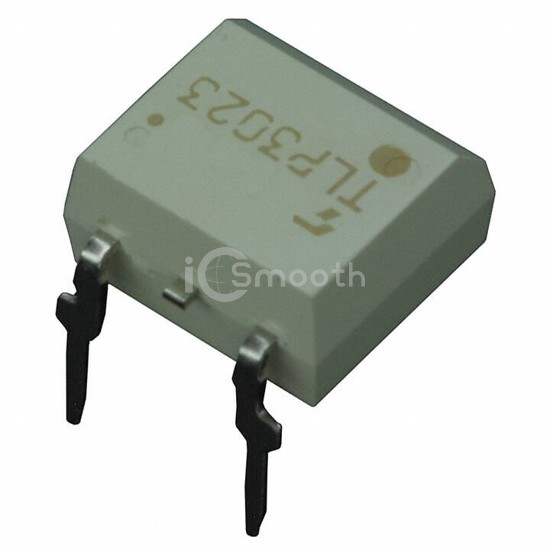

TLP3023SF - Toshiba Semiconductor and Storage - Optoisolators - Triac, SCR Output
REF: TLP3023SF Toshiba Semiconductor and Storage
TLP3023SF

Toshiba Semiconductor and Storage

OPTOISOLATOR 5KV TRIAC 6DIP 5L

TLP3023SF is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLATOR 5KV TRIAC 6DIP 5L. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-DIP (0.300", 7.62mm), 5 Leads.

Datasheet Request a Quote

In Stock: 1,352

Specifications

18 parameters
Product StatusObsolete
Output TypeTriac
Zero Crossing CircuitNo
Number of Channels1
Voltage - Isolation5000Vrms
Voltage - Off State400 V
Static dV/dt (Min)200V/µs
Current - LED Trigger (Ift) (Max)5mA
Current - On State (It (RMS)) (Max)100 mA
Current - Hold (Ih)600µA (Typ)
Turn On Time-
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm), 5 Leads
Supplier Device Package6-DIP (Cut), 5 Lead
Approval AgencyBSI, SEMKO, UR
