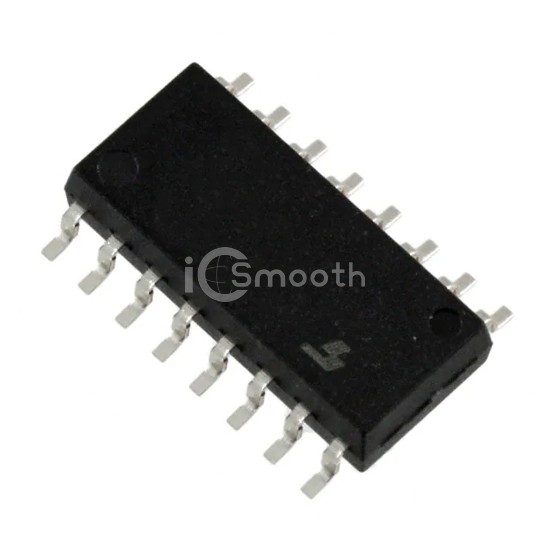

Name: TLP293-4(V4-LA,E
Brand: Toshiba Semiconductor and Storage
SKU: TLP293-4(V4-LA,E
Price: 1.27 USD
Availability: InStock

REF: TLP293-4(V4-LA,E Toshiba Semiconductor and Storage

TLP293-4(V4-LA,E

Toshiba Semiconductor and Storage

OPTOISOLATOR 3.75KV TRANS SO16

TLP293-4(V4-LA,E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLATOR 3.75KV TRANS SO16. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.25V, package / case 16-SOIC (0.179", 4.55mm Width).

Datasheet Request a Quote

In Stock: 5,970

Specifications

18 parameters

Product Status	Active
Number of Channels	4
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	50% @ 500µA
Current Transfer Ratio (Max)	600% @ 500µA
Turn On / Turn Off Time (Typ)	3µs, 3µs
Rise / Fall Time (Typ)	2µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.179", 4.55mm Width)
Supplier Device Package	16-SO
