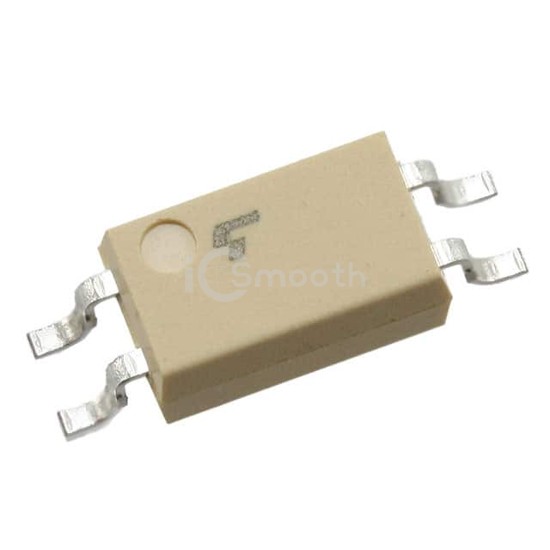

TLP292(E - Toshiba Semiconductor and Storage - Optoisolators - Transistor, Photovoltaic Output
REF: TLP292(E Toshiba Semiconductor and Storage
TLP292(E

Toshiba Semiconductor and Storage

X36 PB-F PHOTOCOUPLER SO4 BULK

TLP292(E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. X36 PB-F PHOTOCOUPLER SO4 BULK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.25V, package / case 4-SOIC (0.179", 4.55mm Width).

Datasheet Request a Quote

In Stock: 6,806

Tiered Pricing USD
1+ $0.5500 —
10+ $0.3820 -31%
175+ $0.2567 -53%
525+ $0.2262 -59%
1,050+ $0.2106 -62%
2,100+ $0.1973 -64%
5,075+ $0.1833 -67%
10,150+ $0.1741 -68%
25,025+ $0.1643 -70% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)50% @ 5mA
Current Transfer Ratio (Max)600% @ 5mA
Turn On / Turn Off Time (Typ)3µs, 3µs
Rise / Fall Time (Typ)2µs, 3µs
Input TypeAC, DC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case4-SOIC (0.179", 4.55mm Width)
Supplier Device Package4-SO
