Name: TLP292(BL-TPL,E
Brand: Toshiba Semiconductor and Storage
SKU: TLP292(BL-TPL,E
Price: 0.55 USD
Availability: InStock

REF: TLP292(BL-TPL,E Toshiba Semiconductor and Storage

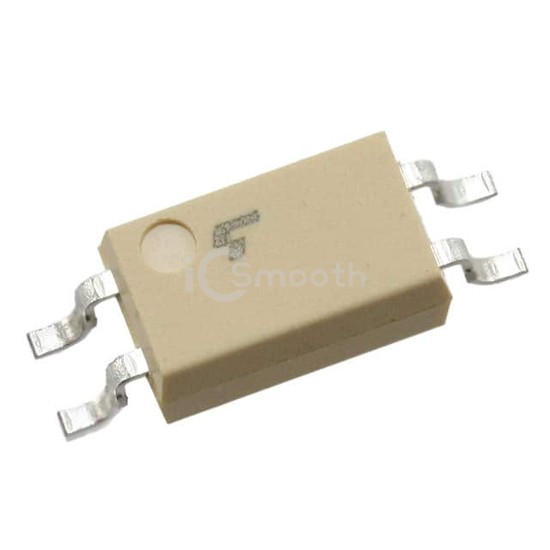

TLP292(BL-TPL,E

Toshiba Semiconductor and Storage

OPTOISOLATOR 3.75KV TRANS 4-SO

TLP292(BL-TPL,E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLATOR 3.75KV TRANS 4-SO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.25V, package / case 4-SOIC (0.179", 4.55mm Width).

Datasheet Request a Quote

In Stock: 2,403

Tiered Pricing USD

1+ $0.5500 —

10+ $0.3820 -31%

100+ $0.2755 -50%

500+ $0.2274 -59%

1,000+ $0.2116 -62% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	200% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	3µs, 3µs
Rise / Fall Time (Typ)	2µs, 3µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	4-SOIC (0.179", 4.55mm Width)
Supplier Device Package	4-SO
