TLP292-4(LA,E

In Stock: 1,875
TLP292-4(LA,E - Toshiba Semiconductor and Storage - Optoisolators - Transistor, Photovoltaic Output
REF: TLP292-4(LA,E Toshiba Semiconductor and Storage
TLP292-4(LA,E

Toshiba Semiconductor and Storage

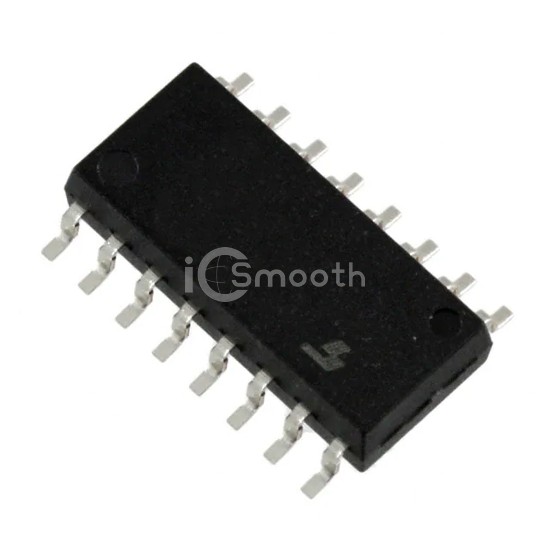

OPTOISOLATOR 3.75KV TRANS SO16

TLP292-4(LA,E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLATOR 3.75KV TRANS SO16. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.25V, package / case 16-SOIC (0.179", 4.55mm Width).

Datasheet Request a Quote

In Stock: 1,875

Tiered Pricing USD
1+ $1.6600 —
50+ $0.9654 -42%
100+ $0.8939 -46%
500+ $0.7664 -54%
1,000+ $0.7247 -56%
2,000+ $0.6894 -58%
5,000+ $0.6509 -61%
10,000+ $0.6270 -62% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels4
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)50% @ 500µA
Current Transfer Ratio (Max)600% @ 500µA
Turn On / Turn Off Time (Typ)3µs, 3µs
Rise / Fall Time (Typ)2µs, 3µs
Input TypeAC, DC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.179", 4.55mm Width)
Supplier Device Package16-SO
