Name: TLP291-4(GB-TP,E)
Brand: Toshiba Semiconductor and Storage
SKU: TLP291-4(GB-TP,E)
Price: 1.42 USD
Availability: InStock

REF: TLP291-4(GB-TP,E) Toshiba Semiconductor and Storage

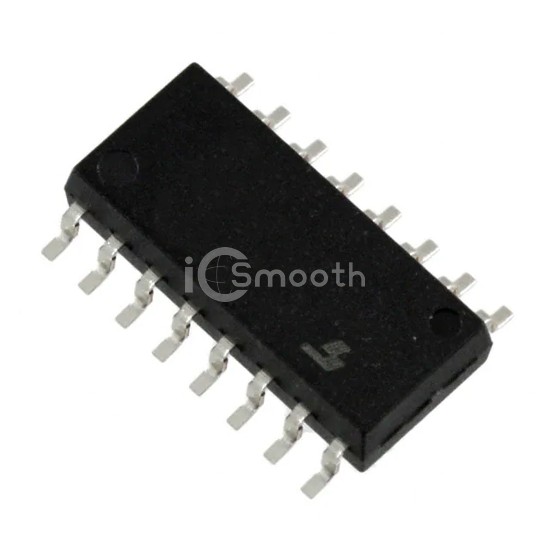

TLP291-4(GB-TP,E)

Toshiba Semiconductor and Storage

OPTOISOLTR 2.5KV 4CH TRANS 16-SO

TLP291-4(GB-TP,E) is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLTR 2.5KV 4CH TRANS 16-SO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 16-SOIC (0.179", 4.55mm Width).

Datasheet Request a Quote

In Stock: 9,993

Tiered Pricing USD

1+ $1.4200 —

10+ $1.0020 -29%

100+ $0.7519 -47%

500+ $0.6411 -55%

1,000+ $0.6049 -57% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	4
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	100% @ 5mA
Current Transfer Ratio (Max)	400% @ 5mA
Turn On / Turn Off Time (Typ)	3µs, 3µs
Rise / Fall Time (Typ)	2µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.179", 4.55mm Width)
Supplier Device Package	16-SO
