Name: TLP290(V4GBTP,SE
Brand: Toshiba Semiconductor and Storage
SKU: TLP290(V4GBTP,SE
Price: 0.51 USD
Availability: InStock

REF: TLP290(V4GBTP,SE Toshiba Semiconductor and Storage

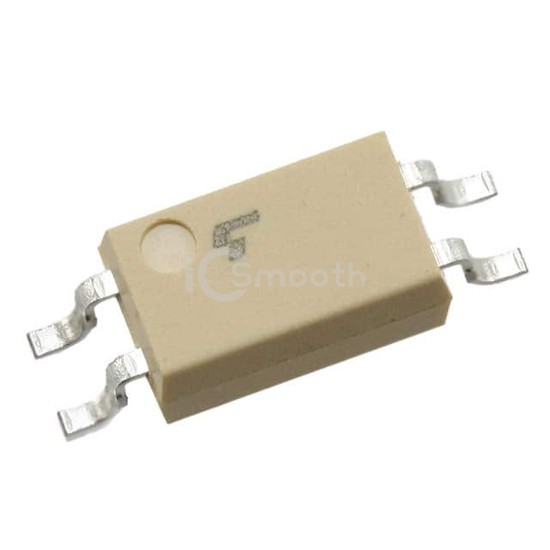

TLP290(V4GBTP,SE

Toshiba Semiconductor and Storage

X36 PB-F TRANSISTOR OPTOCOUPLER

TLP290(V4GBTP,SE is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. X36 PB-F TRANSISTOR OPTOCOUPLER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.25V, package / case 4-SOIC (0.179", 4.55mm Width).

Datasheet Request a Quote

In Stock: 2,812

Tiered Pricing USD

1+ $0.5100 —

10+ $0.3540 -31%

100+ $0.2544 -50%

500+ $0.2095 -59%

1,000+ $0.1947 -62% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	100% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	3µs, 3µs
Rise / Fall Time (Typ)	2µs, 3µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	4-SOIC (0.179", 4.55mm Width)
Supplier Device Package	4-SO
