Name: TLP290-4(GB,E)
Brand: Toshiba Semiconductor and Storage
SKU: TLP290-4(GB,E)
Price: 1.54 USD
Availability: InStock

REF: TLP290-4(GB,E) Toshiba Semiconductor and Storage

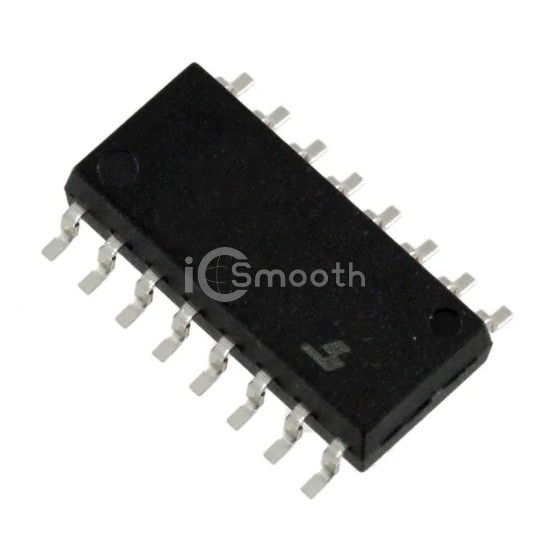

TLP290-4(GB,E)

Toshiba Semiconductor and Storage

OPTOISOLTR 2.5KV 4CH TRANS 16-SO

TLP290-4(GB,E) is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLTR 2.5KV 4CH TRANS 16-SO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 16-SOIC (0.179", 4.55mm Width).

Datasheet Request a Quote

In Stock: 4,441

Tiered Pricing USD

1+ $1.5400 —

50+ $0.8902 -42%

100+ $0.8233 -47%

500+ $0.7040 -54%

1,000+ $0.6651 -57%

2,000+ $0.6320 -59%

5,000+ $0.5960 -61%

10,000+ $0.5736 -63% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	4
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	100% @ 5mA
Current Transfer Ratio (Max)	400% @ 5mA
Turn On / Turn Off Time (Typ)	3µs, 3µs
Rise / Fall Time (Typ)	2µs, 3µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.179", 4.55mm Width)
Supplier Device Package	16-SO
