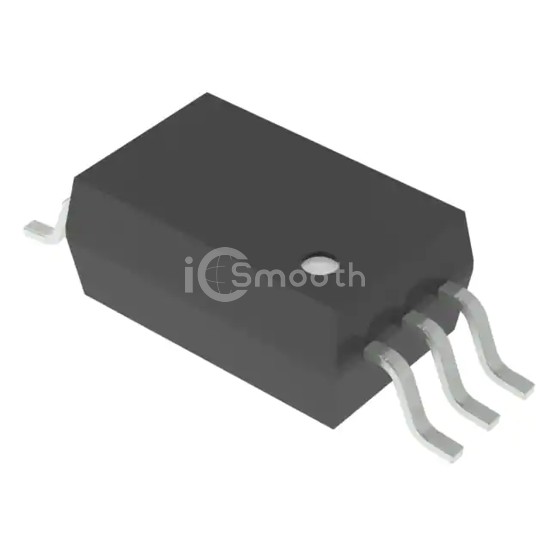

TLP2703(E - Toshiba Semiconductor and Storage - Optoisolators - Transistor, Photovoltaic Output
REF: TLP2703(E Toshiba Semiconductor and Storage
TLP2703(E

Toshiba Semiconductor and Storage

OPTOISO 5KV DARLINGTON SO6L

TLP2703(E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOISO 5KV DARLINGTON SO6L. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.47V, package / case 6-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 5,717

Tiered Pricing USD
1+ $1.4200 —
10+ $1.0020 -29%
125+ $0.7339 -48%
500+ $0.6411 -55%
1,000+ $0.6049 -57%
2,000+ $0.5742 -60%
5,000+ $0.5407 -62%
10,000+ $0.5199 -63% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)900% @ 500µA
Current Transfer Ratio (Max)8000% @ 500µA
Turn On / Turn Off Time (Typ)330ns, 2.5µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeDarlington
Voltage - Output (Max)18V
Current - Output / Channel80mA
Voltage - Forward (Vf) (Typ)1.47V
Current - DC Forward (If) (Max)20 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.295", 7.50mm Width)
Supplier Device Package6-SO
