TLP260JTPRPF

In Stock: 2,879

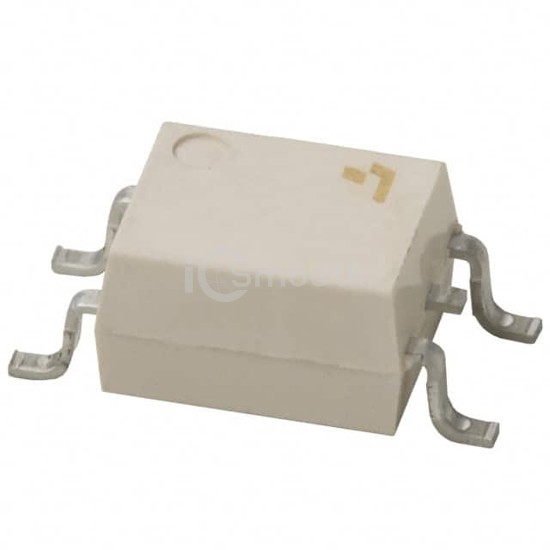

TLP260JTPRPF - Toshiba Semiconductor and Storage - Optoisolators - Triac, SCR Output
REF: TLP260JTPRPF Toshiba Semiconductor and Storage
TLP260JTPRPF

Toshiba Semiconductor and Storage

OPTOISOLATOR 3KV TRIAC 4SOP

TLP260JTPRPF is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLATOR 3KV TRIAC 4SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 2,879

Specifications

18 parameters
Product StatusObsolete
Output TypeTriac
Zero Crossing CircuitNo
Number of Channels1
Voltage - Isolation3000Vrms
Voltage - Off State600 V
Static dV/dt (Min)500V/µs (Typ)
Current - LED Trigger (Ift) (Max)10mA
Current - On State (It (RMS)) (Max)70 mA
Current - Hold (Ih)1mA (Typ)
Turn On Time30µs
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-SOP
Approval AgencyUR
