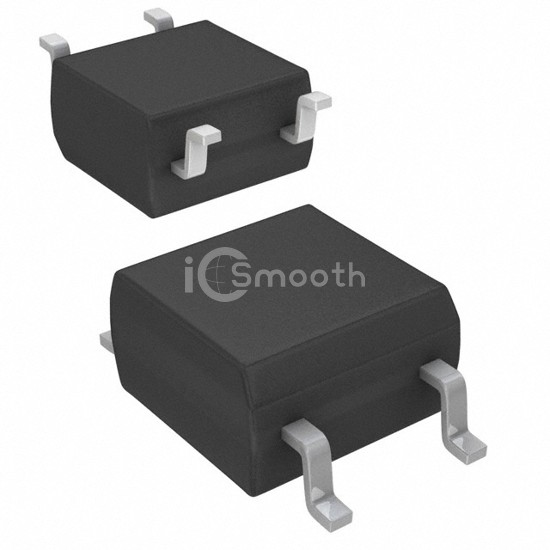

TLP2301(E - Toshiba Semiconductor and Storage - Optoisolators - Transistor, Photovoltaic Output
REF: TLP2301(E Toshiba Semiconductor and Storage
TLP2301(E

Toshiba Semiconductor and Storage

X36 PB-F PHOTOCOUPLER SO6 BULK R

TLP2301(E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. X36 PB-F PHOTOCOUPLER SO6 BULK R. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.25V, package / case 6-SOIC (0.173", 4.40mm Width), 4 Leads.

Datasheet Request a Quote

In Stock: 1,270

Tiered Pricing USD
1+ $0.5900 —
10+ $0.4100 -31%
125+ $0.2880 -51%
500+ $0.2451 -58%
1,000+ $0.2283 -61%
2,000+ $0.2141 -64%
5,000+ $0.1984 -66%
10,000+ $0.1887 -68%
25,000+ $0.1781 -70% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)50% @ 1mA
Current Transfer Ratio (Max)600% @ 1mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)40V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.173", 4.40mm Width), 4 Leads
Supplier Device Package6-SOP
