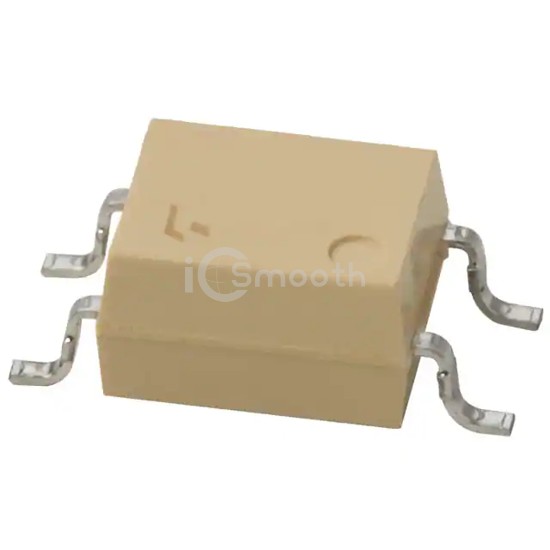

Name: TLP191B(U,C,F)
Brand: Toshiba Semiconductor and Storage
SKU: TLP191B(U,C,F)
Availability: InStock

REF: TLP191B(U,C,F) Toshiba Semiconductor and Storage

TLP191B(U,C,F)

OPTOISOLTR 2.5KV PHVOLT 6-MFSOP

TLP191B(U,C,F) is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLTR 2.5KV PHVOLT 6-MFSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 80°C, voltage - forward (vf) (typ) 1.4V, package / case 6-SMD (4 Leads), Gull Wing.

Datasheet Request a Quote

In Stock: 2,167

Specifications

18 parameters

Product Status	Last Time Buy
Number of Channels	1
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	-
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	200µs, 3ms
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Photovoltaic

Voltage - Output (Max)	8V
Current - Output / Channel	24µA
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 80°C
Mounting Type	Surface Mount
Package / Case	6-SMD (4 Leads), Gull Wing
Supplier Device Package	6-MFSOP, 4 Lead
