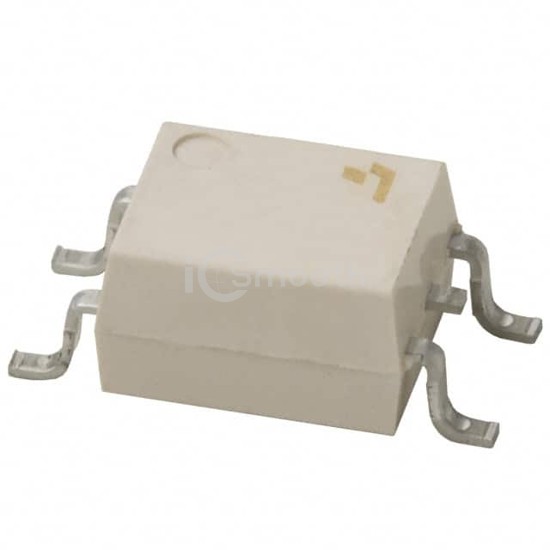

Name: TLP161J(TPR,U,C,F)
Brand: Toshiba Semiconductor and Storage
SKU: TLP161J(TPR,U,C,F)
Availability: InStock

REF: TLP161J(TPR,U,C,F) Toshiba Semiconductor and Storage

TLP161J(TPR,U,C,F)

Toshiba Semiconductor and Storage

OPTOISOLATOR 2.5KV TRIAC 6MFSOP

TLP161J(TPR,U,C,F) is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLATOR 2.5KV TRIAC 6MFSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-SOIC (0.173", 4.40mm Width), 4 Leads.

Datasheet Request a Quote

In Stock: 5,506

Specifications

18 parameters

Product Status	Obsolete
Output Type	Triac
Zero Crossing Circuit	Yes
Number of Channels	1
Voltage - Isolation	2500Vrms
Voltage - Off State	600 V
Static dV/dt (Min)	200V/µs
Current - LED Trigger (Ift) (Max)	10mA
Current - On State (It (RMS)) (Max)	70 mA

Current - Hold (Ih)	600µA (Typ)
Turn On Time	-
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	50 mA
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 4 Leads
Supplier Device Package	6-MFSOP, 4 Lead
Approval Agency	UR
