TLP160J(U,C,F)

In Stock: 4,695

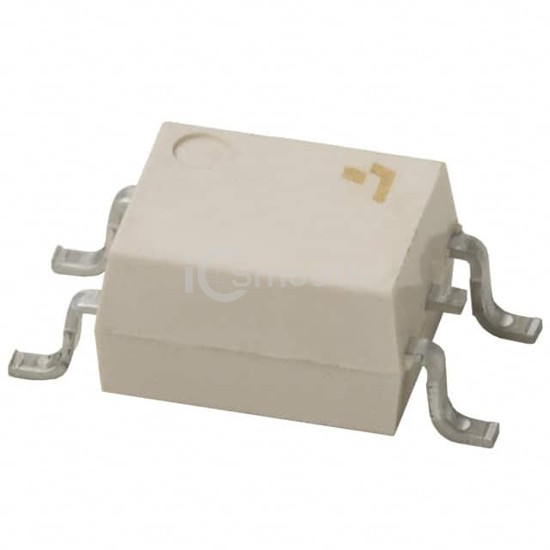

TLP160J(U,C,F) - Toshiba Semiconductor and Storage - Optoisolators - Triac, SCR Output
REF: TLP160J(U,C,F) Toshiba Semiconductor and Storage
TLP160J(U,C,F)

Toshiba Semiconductor and Storage

OPTOISOLATOR 2.5KV TRIAC 6MFSOP

TLP160J(U,C,F) is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLATOR 2.5KV TRIAC 6MFSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-SOIC (0.173", 4.40mm Width), 4 Leads.

Datasheet Request a Quote

In Stock: 4,695

Specifications

18 parameters
Product StatusObsolete
Output TypeTriac
Zero Crossing CircuitNo
Number of Channels1
Voltage - Isolation2500Vrms
Voltage - Off State600 V
Static dV/dt (Min)500V/µs
Current - LED Trigger (Ift) (Max)10mA
Current - On State (It (RMS)) (Max)70 mA
Current - Hold (Ih)1mA (Typ)
Turn On Time30µs
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.173", 4.40mm Width), 4 Leads
Supplier Device Package6-MFSOP, 4 Lead
Approval AgencyUR
