Name: TLP126TPRF
Brand: Toshiba Semiconductor and Storage
SKU: TLP126TPRF
Availability: InStock

REF: TLP126TPRF Toshiba Semiconductor and Storage

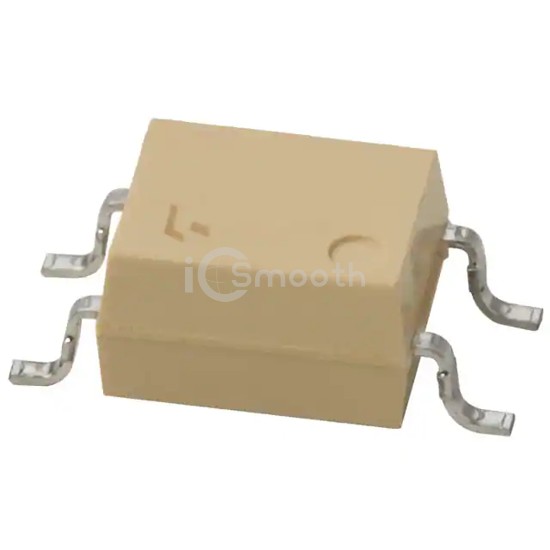

TLP126TPRF

OPTOISOLTR 3.75KV TRANS 6-MFSOP

TLP126TPRF is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLTR 3.75KV TRANS 6-MFSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-SMD (4 Leads), Gull Wing.

Datasheet Request a Quote

In Stock: 3,055

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	100% @ 1mA
Current Transfer Ratio (Max)	1200% @ 1mA
Turn On / Turn Off Time (Typ)	10µs, 8µs
Rise / Fall Time (Typ)	8µs, 8µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD (4 Leads), Gull Wing
Supplier Device Package	6-MFSOP, 4 Lead
