Name: TCS20DLR,LF
Brand: Toshiba Semiconductor and Storage
SKU: TCS20DLR,LF
Availability: InStock

REF: TCS20DLR,LF Toshiba Semiconductor and Storage

TCS20DLR,LF

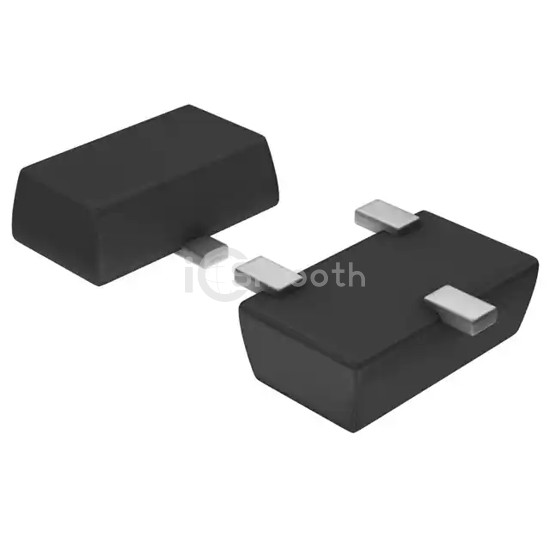

MAGNETIC SWITCH OMNIPOLAR SOT23F

TCS20DLR,LF is a Magnetic Sensors - Switches (Solid State) manufactured by Toshiba Semiconductor and Storage. MAGNETIC SWITCH OMNIPOLAR SOT23F. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.3V ~ 5.5V, package / case SOT-23-3 Flat Leads.

Datasheet Request a Quote

In Stock: 7,619

Specifications

15 parameters

Product Status	Obsolete
Function	Omnipolar Switch
Technology	Hall Effect
Polarization	North Pole, South Pole
Sensing Range	±4.4mT Trip, ±0.9mT Release
Test Condition	25°C
Voltage - Supply	2.3V ~ 5.5V
Current - Supply (Max)	1.6mA (Typ)

Current - Output (Max)	5mA
Output Type	Open Drain
Features	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23F
Package / Case	SOT-23-3 Flat Leads
