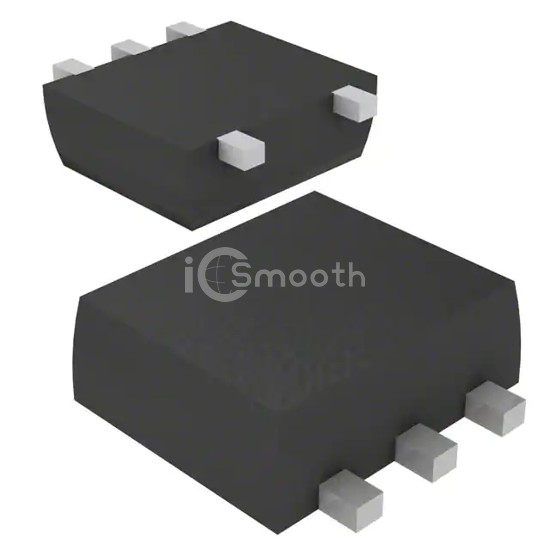

Name: TCS10DPU(TE85L,F)
Brand: Toshiba Semiconductor and Storage
SKU: TCS10DPU(TE85L,F)
Availability: InStock

REF: TCS10DPU(TE85L,F) Toshiba Semiconductor and Storage

TCS10DPU(TE85L,F)

Toshiba Semiconductor and Storage

MAGNETIC SWITCH OMNIPOLAR UFV

TCS10DPU(TE85L,F) is a Magnetic Sensors - Switches (Solid State) manufactured by Toshiba Semiconductor and Storage. MAGNETIC SWITCH OMNIPOLAR UFV. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.3V ~ 3.6V, package / case 6-SMD (5 Leads), Flat Lead.

Datasheet Request a Quote

In Stock: 6,796

Specifications

15 parameters

Product Status	Obsolete
Function	Omnipolar Switch
Technology	Hall Effect
Polarization	North Pole, South Pole
Sensing Range	±2.5mT Trip, ±0.3mT Release
Test Condition	25°C
Voltage - Supply	2.3V ~ 3.6V
Current - Supply (Max)	1.3mA

Current - Output (Max)	5mA
Output Type	Push-Pull
Features	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	UFV
Package / Case	6-SMD (5 Leads), Flat Lead
