Name: TCR8BM105A,L3F
Brand: Toshiba Semiconductor and Storage
SKU: TCR8BM105A,L3F
Price: 0.36 USD
Availability: InStock

REF: TCR8BM105A,L3F Toshiba Semiconductor and Storage

TCR8BM105A,L3F

Toshiba Semiconductor and Storage

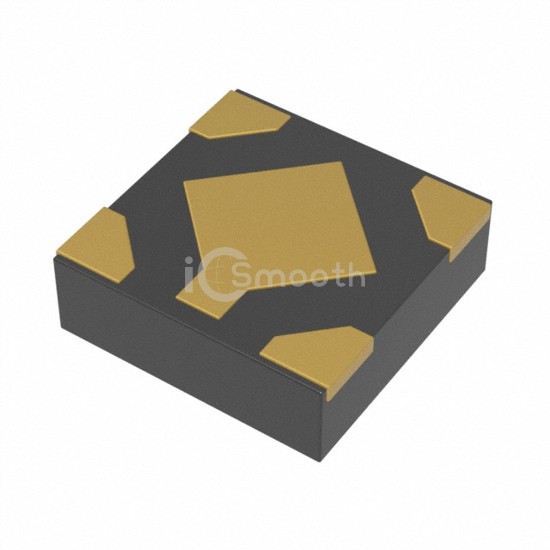

IC REG LINEAR 1.05V 800MA 5DFNB

TCR8BM105A,L3F is a PMIC - Voltage Regulators - Linear manufactured by Toshiba Semiconductor and Storage. IC REG LINEAR 1.05V 800MA 5DFNB. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), package / case 4-XDFN Exposed Pad, current - output 800mA.

Datasheet Request a Quote

In Stock: 9,900

Tiered Pricing USD

1+ $0.3600 —

10+ $0.2460 -32%

25+ $0.2188 -39%

100+ $0.1888 -48%

250+ $0.1745 -52%

500+ $0.1659 -54%

1,000+ $0.1587 -56%

2,500+ $0.1512 -58% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.05V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.24V @ 800mA
Current - Output	800mA

Current - Quiescent (Iq)	36 µA
Current - Supply (Max)	-
PSRR	98dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-XDFN Exposed Pad
Supplier Device Package	5-DFNB (1.2x1.2)
