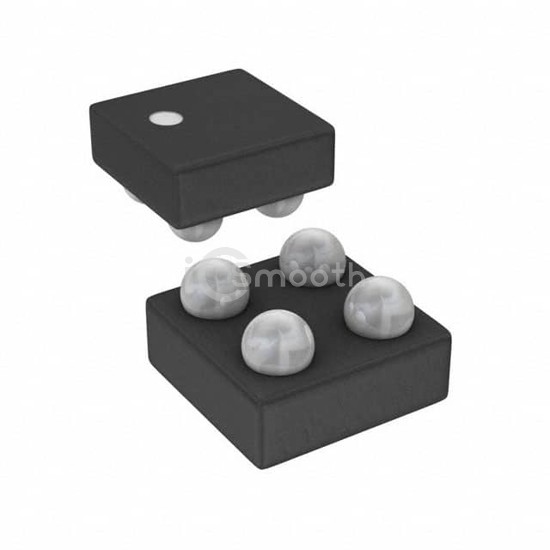

Name: TCR5RG29A,LF
Brand: Toshiba Semiconductor and Storage
SKU: TCR5RG29A,LF
Price: 0.31 USD
Availability: InStock

REF: TCR5RG29A,LF Toshiba Semiconductor and Storage

TCR5RG29A,LF

Toshiba Semiconductor and Storage

LDO REG, IOUT: 500MA VOUT: 2.9V

TCR5RG29A,LF is a PMIC - Voltage Regulators - Linear manufactured by Toshiba Semiconductor and Storage. LDO REG, IOUT: 500MA VOUT: 2.9V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 4-XFBGA, WLCSP, current - output 500mA.

Datasheet Request a Quote

In Stock: 10,000

Tiered Pricing USD

1+ $0.3100 —

10+ $0.2140 -31%

25+ $0.1896 -39%

100+ $0.1631 -47%

250+ $0.1504 -51%

500+ $0.1428 -54%

1,000+ $0.1365 -56%

2,500+ $0.1299 -58% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	2.9V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-
Current - Output	500mA

Current - Quiescent (Iq)	13 µA
Current - Supply (Max)	-
PSRR	100dB ~ 59dB (1kHz ~ 1MHz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	4-XFBGA, WLCSP
Supplier Device Package	4-WCSPF (0.65x0.65)
