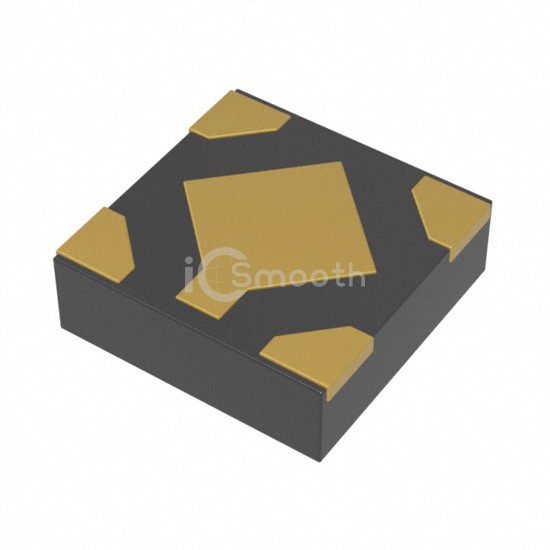

Name: TCR5AM18A,LF
Brand: Toshiba Semiconductor and Storage
SKU: TCR5AM18A,LF
Price: 0.12 USD
Availability: InStock

REF: TCR5AM18A,LF Toshiba Semiconductor and Storage

TCR5AM18A,LF

Toshiba Semiconductor and Storage

IC REG LINEAR 1.8V 500MA 5DFNB

TCR5AM18A,LF is a PMIC - Voltage Regulators - Linear manufactured by Toshiba Semiconductor and Storage. IC REG LINEAR 1.8V 500MA 5DFNB. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), package / case 4-XDFN Exposed Pad, current - output 500mA.

Datasheet Request a Quote

In Stock: 9,531

Tiered Pricing USD

5,000+ $0.1218 —

10,000+ $0.1186 -3%

15,000+ $0.1170 -4%

25,000+ $0.1152 -5%

35,000+ $0.1141 -6%

50,000+ $0.1132 -7% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.43V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	55 µA
Current - Supply (Max)	-
PSRR	90dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-XDFN Exposed Pad
Supplier Device Package	5-DFNB (1.2x1.2)
