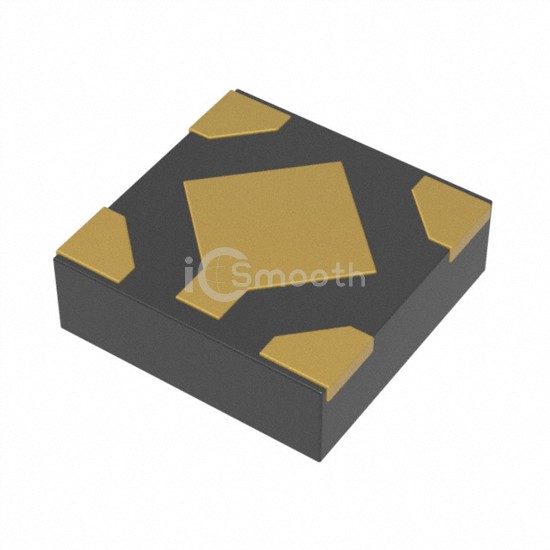

Name: TCR5AM12,LF
Brand: Toshiba Semiconductor and Storage
SKU: TCR5AM12,LF
Price: 0.30 USD
Availability: InStock

REF: TCR5AM12,LF Toshiba Semiconductor and Storage

TCR5AM12,LF

Toshiba Semiconductor and Storage

IC REG LINEAR 1.2V 500MA 5DFNB

TCR5AM12,LF is a PMIC - Voltage Regulators - Linear manufactured by Toshiba Semiconductor and Storage. IC REG LINEAR 1.2V 500MA 5DFNB. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), package / case 4-XDFN Exposed Pad, current - output 500mA.

Datasheet Request a Quote

In Stock: 1,099

Tiered Pricing USD

1+ $0.3000 —

10+ $0.2070 -31%

25+ $0.1836 -39%

100+ $0.1579 -47%

250+ $0.1456 -51%

500+ $0.1382 -54%

1,000+ $0.1321 -56%

2,500+ $0.1256 -58% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.27V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	55 µA
Current - Supply (Max)	-
PSRR	70dB ~ 40dB (1kHz ~ 10Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-XDFN Exposed Pad
Supplier Device Package	5-DFNB (1.2x1.2)
