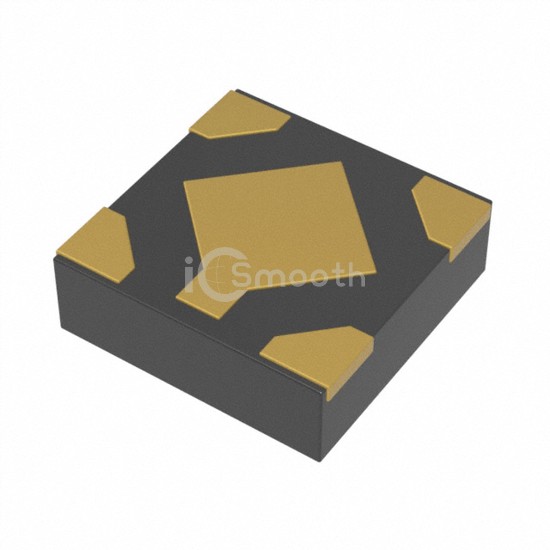

Name: TCR5AM105A,LF
Brand: Toshiba Semiconductor and Storage
SKU: TCR5AM105A,LF
Price: 0.13 USD
Availability: InStock

REF: TCR5AM105A,LF Toshiba Semiconductor and Storage

TCR5AM105A,LF

Toshiba Semiconductor and Storage

IC REG LINEAR 1.05V 500MA 5DFNB

TCR5AM105A,LF is a PMIC - Voltage Regulators - Linear manufactured by Toshiba Semiconductor and Storage. IC REG LINEAR 1.05V 500MA 5DFNB. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), package / case 4-XDFN Exposed Pad, current - output 500mA.

Datasheet Request a Quote

In Stock: 6,839

Tiered Pricing USD

5,000+ $0.1287 —

10,000+ $0.1254 -3%

15,000+ $0.1237 -4%

25,000+ $0.1218 -5%

35,000+ $0.1207 -6%

50,000+ $0.1197 -7% BEST

Specifications

18 parameters

Product Status	Not For New Designs
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.05V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.25V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	55 µA
Current - Supply (Max)	-
PSRR	70dB ~ 40dB (1kHz ~ 10Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-XDFN Exposed Pad
Supplier Device Package	5-DFNB (1.2x1.2)
