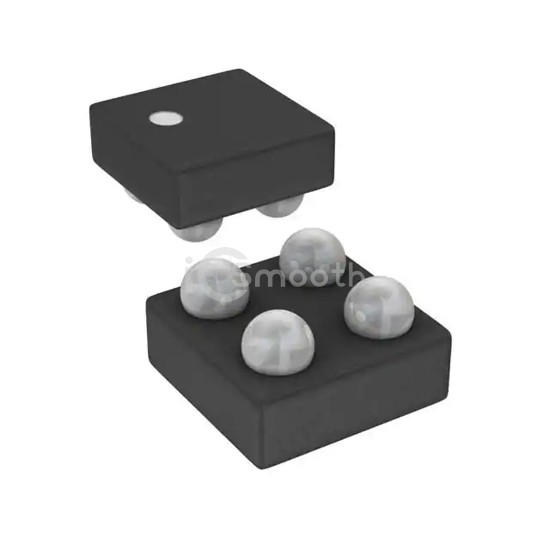

Name: TCR3UG08A,LF
Brand: Toshiba Semiconductor and Storage
SKU: TCR3UG08A,LF
Price: 0.49 USD
Availability: InStock

REF: TCR3UG08A,LF Toshiba Semiconductor and Storage

TCR3UG08A,LF

Toshiba Semiconductor and Storage

IC REG LINEAR 0.8V 300MA 4WCSP-F

TCR3UG08A,LF is a PMIC - Voltage Regulators - Linear manufactured by Toshiba Semiconductor and Storage. IC REG LINEAR 0.8V 300MA 4WCSP-F. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), package / case 4-XFBGA, WLCSP, current - output 300mA.

Datasheet Request a Quote

In Stock: 4,996

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.257V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	580 nA
Current - Supply (Max)	-
PSRR	70dB (1kHz)
Control Features	Enable
Protection Features	Inrush Current, Over Current, Thermal Shutdown
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-XFBGA, WLCSP
Supplier Device Package	4-WCSP-F (0.65x0.65)
