Name: TCR3DF45,LM(CT
Brand: Toshiba Semiconductor and Storage
SKU: TCR3DF45,LM(CT
Price: 0.50 USD
Availability: InStock

REF: TCR3DF45,LM(CT Toshiba Semiconductor and Storage

TCR3DF45,LM(CT

Toshiba Semiconductor and Storage

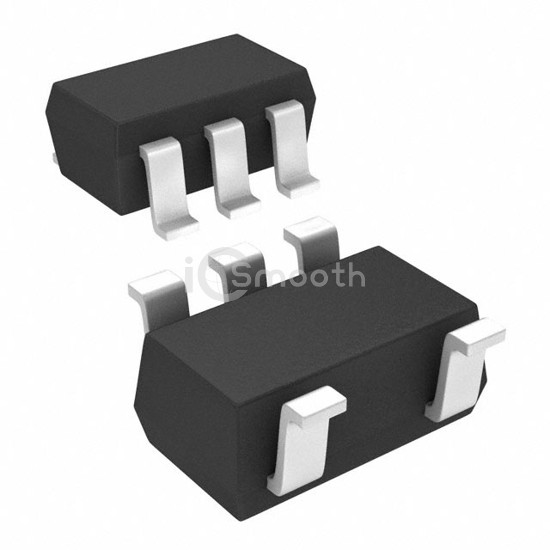

IC REG LINEAR 4.5V 300MA SMV

TCR3DF45,LM(CT is a PMIC - Voltage Regulators - Linear manufactured by Toshiba Semiconductor and Storage. IC REG LINEAR 4.5V 300MA SMV. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case SC-74A, SOT-753, current - output 300mA.

Datasheet Request a Quote

In Stock: 5,807

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	4.5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.22V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	125 µA
Current - Supply (Max)	-
PSRR	70dB (1kHz)
Control Features	Enable
Protection Features	Inrush Current, Over Current, Over Temperature
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SMV
