Name: TCR15AG30,LF
Brand: Toshiba Semiconductor and Storage
SKU: TCR15AG30,LF
Price: 0.23 USD
Availability: InStock

REF: TCR15AG30,LF Toshiba Semiconductor and Storage

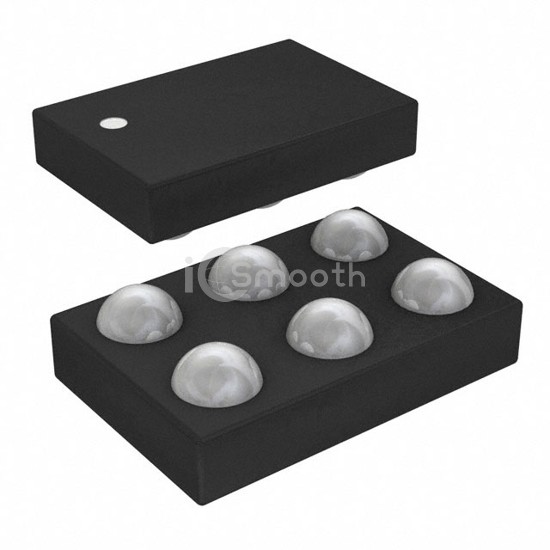

TCR15AG30,LF

Toshiba Semiconductor and Storage

IC REG LINEAR 3V 1.5A 6WCSP

TCR15AG30,LF is a PMIC - Voltage Regulators - Linear manufactured by Toshiba Semiconductor and Storage. IC REG LINEAR 3V 1.5A 6WCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), package / case 6-XFBGA, WLCSP, current - output 1.5A.

Datasheet Request a Quote

In Stock: 2,428

Tiered Pricing USD

5,000+ $0.2320 —

10,000+ $0.2265 -2%

15,000+ $0.2238 -4%

25,000+ $0.2208 -5%

35,000+ $0.2190 -6% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.648V @ 1.5A
Current - Output	1.5A

Current - Quiescent (Iq)	40 µA
Current - Supply (Max)	-
PSRR	95dB ~ 60dB (1kHz)
Control Features	Enable
Protection Features	Current Limit, Thermal Shutdown, UVLO
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-XFBGA, WLCSP
Supplier Device Package	6-WCSP (1.2x0.80)
