TC7WH02FK(TE85L)

In Stock: 5,914

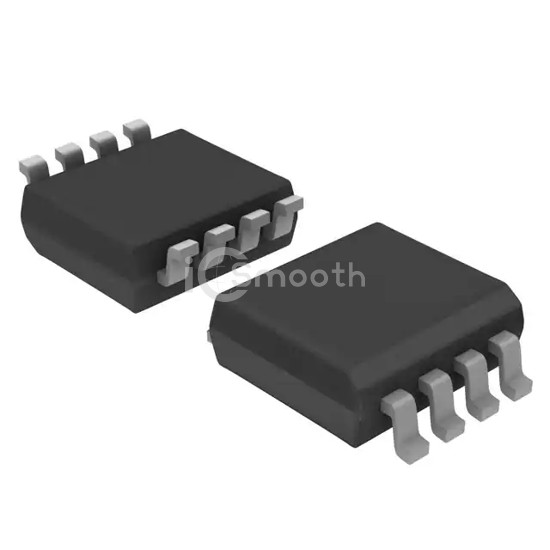

TC7WH02FK(TE85L) - Toshiba Semiconductor and Storage - Logic - Gates and Inverters
REF: TC7WH02FK(TE85L) Toshiba Semiconductor and Storage
TC7WH02FK(TE85L)

Toshiba Semiconductor and Storage

IC GATE NOR 2CH 2-INP US8

TC7WH02FK(TE85L) is a Logic - Gates and Inverters manufactured by Toshiba Semiconductor and Storage. IC GATE NOR 2CH 2-INP US8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 5.5V, package / case 8-VFSOP (0.091", 2.30mm Width).

Datasheet Request a Quote

In Stock: 5,914

Specifications

15 parameters
Product StatusObsolete
Logic TypeNOR Gate
Number of Circuits2
Number of Inputs2
Features-
Voltage - Supply2V ~ 5.5V
Current - Quiescent (Max)2 µA
Current - Output High, Low8mA, 8mA
Logic Level - Low0.5V
Logic Level - High1.5V
Max Propagation Delay @ V, Max CL7.5ns @ 5V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package8-SSOP
Package / Case8-VFSOP (0.091", 2.30mm Width)
