TC7W32FKTE85LF

In Stock: 2,208

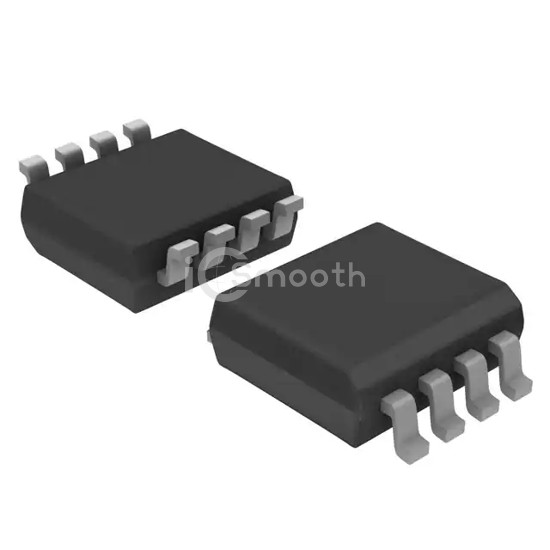

TC7W32FKTE85LF - Toshiba Semiconductor and Storage - Logic - Gates and Inverters
REF: TC7W32FKTE85LF Toshiba Semiconductor and Storage
TC7W32FKTE85LF

Toshiba Semiconductor and Storage

IC GATE OR 2CH 2-INP US8

TC7W32FKTE85LF is a Logic - Gates and Inverters manufactured by Toshiba Semiconductor and Storage. IC GATE OR 2CH 2-INP US8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 6V, package / case 8-VFSOP (0.091", 2.30mm Width).

Datasheet Request a Quote

In Stock: 2,208

Specifications

15 parameters
Product StatusObsolete
Logic TypeOR Gate
Number of Circuits2
Number of Inputs2
Features-
Voltage - Supply2V ~ 6V
Current - Quiescent (Max)1 µA
Current - Output High, Low5.2mA, 5.2mA
Logic Level - Low0.5V ~ 1.8V
Logic Level - High1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL13ns @ 6V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package8-SSOP
Package / Case8-VFSOP (0.091", 2.30mm Width)
