Name: TB9120AFTG(EL)
Brand: Toshiba Semiconductor and Storage
SKU: TB9120AFTG(EL)
Price: 3.71 USD
Availability: InStock

REF: TB9120AFTG(EL) Toshiba Semiconductor and Storage

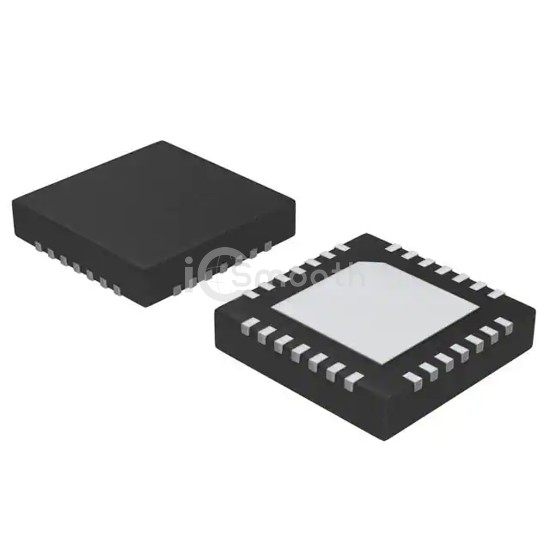

TB9120AFTG(EL)

Toshiba Semiconductor and Storage

AEC-Q100 BIPOLAR STEPPER MOTOR D

TB9120AFTG(EL) is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. AEC-Q100 BIPOLAR STEPPER MOTOR D. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 7V, 7V ~ 18V, package / case 28-VQFN Exposed Pad.

Request a Quote

In Stock: 1,994

Tiered Pricing USD

1+ $3.7100 —

10+ $2.8000 -25%

25+ $2.5720 -31%

100+ $2.3208 -37%

250+ $2.2011 -41%

500+ $2.1289 -43%

1,000+ $2.0695 -44% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Pre-Driver - Half Bridge (4)
Interface	Parallel, PWM
Technology	NMOS, PMOS
Step Resolution	1, 1/2, 1/8, 1/16, 1/32

Applications	Automotive
Current - Output	2.5A
Voltage - Supply	4.5V ~ 7V, 7V ~ 18V
Voltage - Load	-
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	28-VQFN Exposed Pad
Supplier Device Package	28-VQFN (6x6)
