Name: TB67S109AFNG,EL
Brand: Toshiba Semiconductor and Storage
SKU: TB67S109AFNG,EL
Price: 3.44 USD
Availability: InStock

REF: TB67S109AFNG,EL Toshiba Semiconductor and Storage

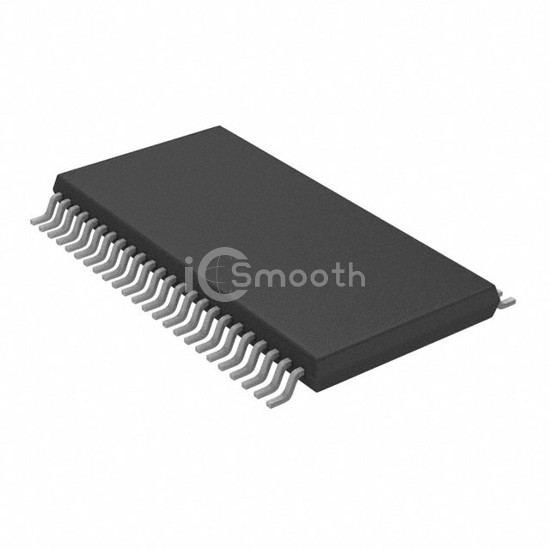

TB67S109AFNG,EL

Toshiba Semiconductor and Storage

IC MOTOR DRIVER BIPOLAR 48HTSSOP

TB67S109AFNG,EL is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MOTOR DRIVER BIPOLAR 48HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 150°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 48-TFSOP (0.240", 6.10mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 2,769

Tiered Pricing USD

1+ $3.4400 —

10+ $2.5880 -25%

25+ $2.3744 -31%

100+ $2.1398 -38%

250+ $2.0279 -41%

500+ $1.9605 -43% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	Parallel
Technology	Power MOSFET
Step Resolution	1 ~ 1/32

Applications	General Purpose
Current - Output	3A
Voltage - Supply	4.75V ~ 5.25V
Voltage - Load	10V ~ 47V
Operating Temperature	-20°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	48-TFSOP (0.240", 6.10mm Width) Exposed Pad
Supplier Device Package	48-HTSSOP
