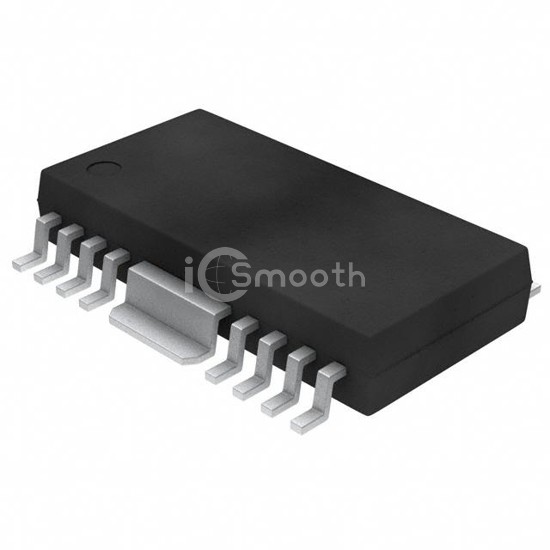

Name: TB6569FG,8,EL
Brand: Toshiba Semiconductor and Storage
SKU: TB6569FG,8,EL
Price: 2.42 USD
Availability: InStock

REF: TB6569FG,8,EL Toshiba Semiconductor and Storage

TB6569FG,8,EL

Toshiba Semiconductor and Storage

IC MOTOR DRIVER 10V-45V 16HSOP

TB6569FG,8,EL is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MOTOR DRIVER 10V-45V 16HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 10V ~ 45V, package / case 16-BSOP (0.252", 6.40mm Width) + 2 Heat Tabs.

Datasheet Request a Quote

In Stock: 7,722

Tiered Pricing USD

1+ $2.4200 —

10+ $1.7970 -26%

25+ $1.6412 -32%

100+ $1.4699 -39%

250+ $1.3882 -43%

500+ $1.3390 -45% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	-
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (2)
Interface	Parallel, PWM
Technology	Bi-CMOS
Step Resolution	-

Applications	General Purpose
Current - Output	1.5A
Voltage - Supply	10V ~ 45V
Voltage - Load	10V ~ 45V
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-BSOP (0.252", 6.40mm Width) + 2 Heat Tabs
Supplier Device Package	16-HSOP
