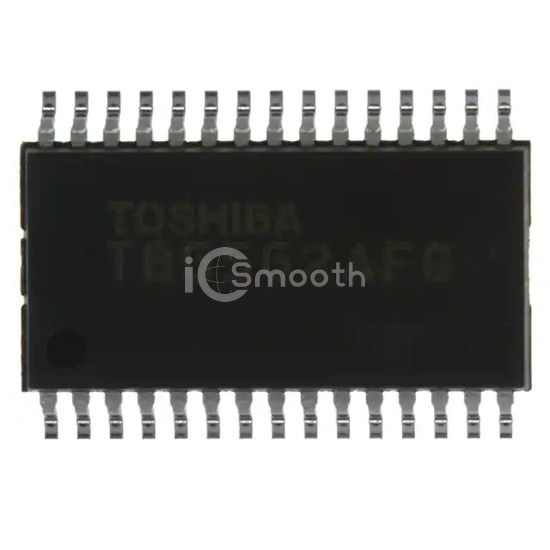

Name: TB6562AFG,8,EL
Brand: Toshiba Semiconductor and Storage
SKU: TB6562AFG,8,EL
Price: 3.05 USD
Availability: InStock

REF: TB6562AFG,8,EL Toshiba Semiconductor and Storage

TB6562AFG,8,EL

Toshiba Semiconductor and Storage

IC MTR DRV BIPOLAR 10-34V 30SSOP

TB6562AFG,8,EL is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MTR DRV BIPOLAR 10-34V 30SSOP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C (TA), voltage - supply 10V ~ 34V, package / case 30-BSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 4,728

Tiered Pricing USD

1+ $3.0500 —

10+ $2.2850 -25%

25+ $2.0928 -31%

100+ $1.8822 -38%

250+ $1.7817 -42%

500+ $1.7211 -44% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	Parallel
Technology	DMOS
Step Resolution	1, 1/2, 1/4

Applications	General Purpose
Current - Output	1.5A
Voltage - Supply	10V ~ 34V
Voltage - Load	10V ~ 34V
Operating Temperature	-20°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	30-BSOP (0.295", 7.50mm Width)
Supplier Device Package	30-SSOP
