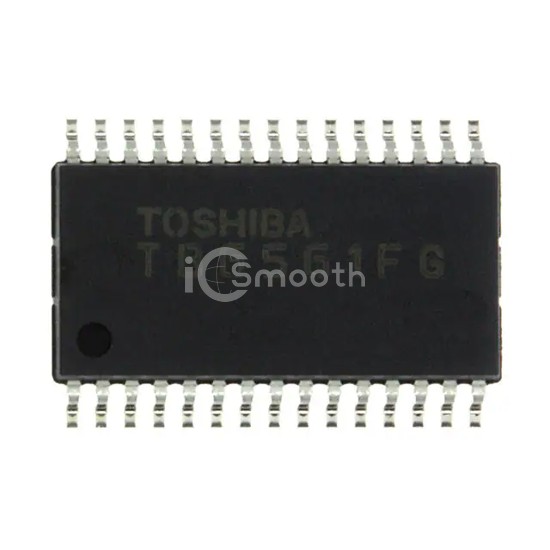

Name: TB6561FG,8,EL
Brand: Toshiba Semiconductor and Storage
SKU: TB6561FG,8,EL
Price: 3.35 USD
Availability: InStock

REF: TB6561FG,8,EL Toshiba Semiconductor and Storage

TB6561FG,8,EL

Toshiba Semiconductor and Storage

IC MOTOR DRIVER 10V-36V 30SSOP

TB6561FG,8,EL is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MOTOR DRIVER 10V-36V 30SSOP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C (TA), voltage - supply 10V ~ 36V, package / case 30-BSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 5,144

Tiered Pricing USD

1+ $3.3500 —

10+ $2.5170 -25%

25+ $2.3084 -31%

100+ $2.0793 -38%

250+ $1.9700 -41%

500+ $1.9042 -43% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	-
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	PWM
Technology	Bi-CMOS
Step Resolution	-

Applications	General Purpose
Current - Output	1.5A
Voltage - Supply	10V ~ 36V
Voltage - Load	10V ~ 36V
Operating Temperature	-20°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	30-BSOP (0.295", 7.50mm Width)
Supplier Device Package	30-SSOP
