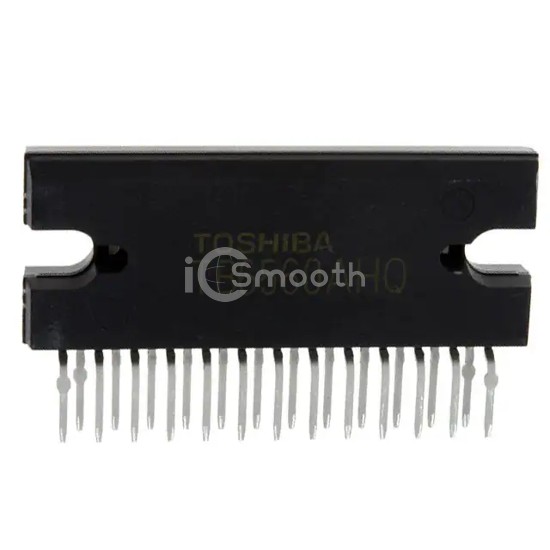

Name: TB6560AHQ,8
Brand: Toshiba Semiconductor and Storage
SKU: TB6560AHQ,8
Price: 6.99 USD
Availability: InStock

REF: TB6560AHQ,8 Toshiba Semiconductor and Storage

TB6560AHQ,8

Toshiba Semiconductor and Storage

IC MTR DRV BIPLR 4.5-5.5V 25HZIP

TB6560AHQ,8 is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MTR DRV BIPLR 4.5-5.5V 25HZIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 85°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 25-SSIP Formed Leads.

Datasheet Request a Quote

In Stock: 5,364

Tiered Pricing USD

1+ $6.9900 —

14+ $5.2300 -25%

28+ $4.9457 -29%

112+ $4.5190 -35%

252+ $4.3365 -38%

504+ $4.2102 -40%

1,008+ $4.1063 -41% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	Parallel
Technology	Power MOSFET
Step Resolution	1, 1/2, 1/4, 1/8, 1/16

Applications	General Purpose
Current - Output	3A
Voltage - Supply	4.5V ~ 5.5V
Voltage - Load	4.5V ~ 34V
Operating Temperature	-30°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	25-SSIP Formed Leads
Supplier Device Package	25-HZIP
