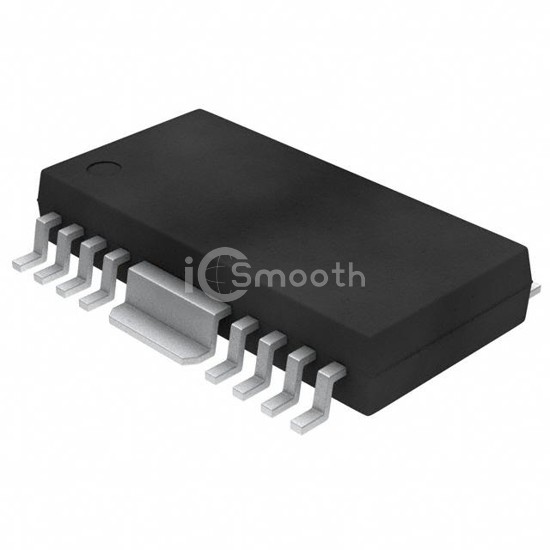

Name: TB6559FG,8,EL
Brand: Toshiba Semiconductor and Storage
SKU: TB6559FG,8,EL
Price: 1.79 USD
Availability: InStock

REF: TB6559FG,8,EL Toshiba Semiconductor and Storage

TB6559FG,8,EL

Toshiba Semiconductor and Storage

IC MOTOR DRIVER 10V-30V 16HSOP

TB6559FG,8,EL is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MOTOR DRIVER 10V-30V 16HSOP. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), voltage - supply 10V ~ 30V, package / case 16-BSOP (0.252", 6.40mm Width) + 2 Heat Tabs.

Datasheet Request a Quote

In Stock: 1,793

Tiered Pricing USD

1+ $1.7900 —

10+ $1.3180 -26%

25+ $1.1988 -33%

100+ $1.0680 -40%

250+ $1.0055 -44%

500+ $0.9679 -46% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	-
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (2)
Interface	Parallel
Technology	NMOS, PMOS
Step Resolution	-

Applications	General Purpose
Current - Output	1A
Voltage - Supply	10V ~ 30V
Voltage - Load	10V ~ 30V
Operating Temperature	-30°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-BSOP (0.252", 6.40mm Width) + 2 Heat Tabs
Supplier Device Package	16-HSOP
